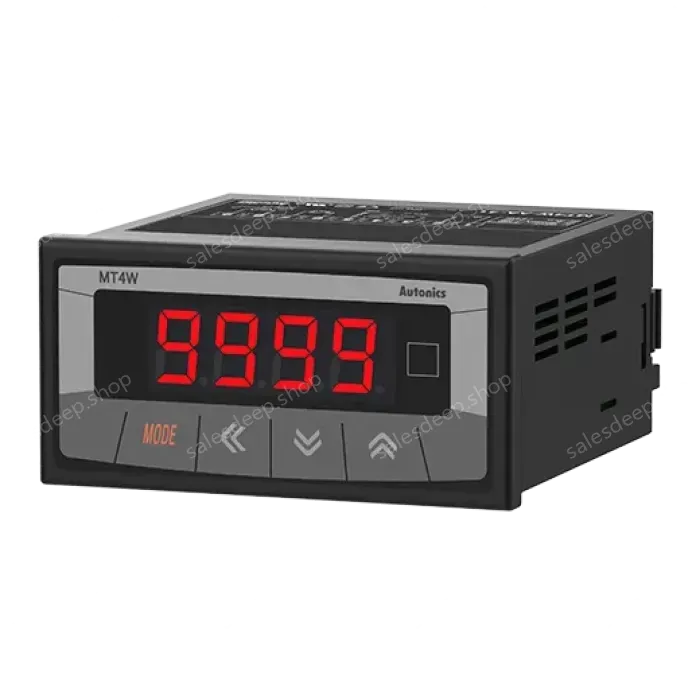

Autonics Voltage/current panel meter MT4W-DA-4N

★ ★ ★ ★ ★ 4.9 3942 Reviews Certified

You May Also Like

Selling List

MT4W-DA-4N

The MT4Y/MT4W series compact digital panel meters are available in various input and output options, allowing flexible application in diverse environments. The units can display measured values between -1999 and 9999, and features various user-friendly functions including high/low-limit display scale, AC frequency measurement, zero-point adjustment, and PV transmission output scale function. The MT4Y series meters are DIN W 96 x H 48 mm and the MT4W series meters are DIN W 72 x H 36 mm in size.

MT4W-DA-4N

Display method	4-digit 7-segment LED
Character height	14.2mm
Max. display Range	-1999 to 9999
Measurement	DC current
Input specification	0-5A, 0-2A, 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA, 0-2mA
Power supply	100-240VAC~ 50/60Hz
Output_Main Output(Comparative Value)	Indicator
Display accuracy	• 23℃±5℃ - ± 0.1 % F.S. rdg ± 2 digit ± 0.3 % F.S. rdg ± 3 digit max. only for 5A terminal. • -10℃ to 50℃ -± 0.5 % F.S. rdg ± 3 digit
A/D conversion method	ΣΔ (Sigma Delta) ADC
Sampling cycle	50ms
Hold function	Includes (external hold function)
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)
Protection structure	IP56 (front part, IEC standard)
Unit weight (packaged weight)	≈ 211 g (≈ 326 g)
